Autonomous Driving
Your Partner
Pioneering the Future
of Mobility
-
Ample Experience and Expertise in Mass
Production of Automotive Components -
Leader in Sensor Pod Solution based on
Extensive Sensor Portfolio and Excellent
Production Capability -
High-performance Sensor Production
in Ultra-precise Sensor and Zero-defect
Quality through Active Alignment
Technology
LG Innotek‘s Product Line-up
-
Camera
ㆍADAS Camera
ㆍCMS Camera
ㆍDMS Camera
-
Radar
ㆍRadar
ㆍIn-cabin Radar
-
LiDAR
ㆍMechanical LiDAR
ㆍSolid State LiDAR
Related Contents
Camera Module
- Camera Precision Production Capabilities
-
- Active alignment process technology
- Performance Enhancement
-
- Robust design to maintain high
resolution performance- Heating solution to overcome
environment factors
- Expertise in Camera Module Technology
-
- Know-hows on development and mass production
accumulated in mobile industry
- Slimming Camera Module Size
-
- Utilizing ultrasonic welding technology
connects the parts with ultrasonic waves
- Complex Lens Solution for
Variety of Applications

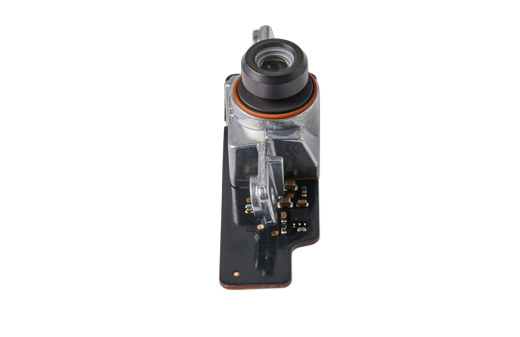

ADAS(Advanced Driver Assistance System) camera recognizes the surroundings outside the vehicle to allow autonomous driving and provide passengers with safety and convenience.
Key Features
- ㆍHigh Resolution(~8Mp) with Athermalization Design
- ㆍHigh reliability
-
- Low (-40℃)/High(+105℃) Temperature
- Waterproof(IP67K)
- Dustproof(IP69K)
- ㆍSuperior Performance through Active Alignment
Specification
-
- Product
- 8Mp ADAS Camera
-
- Sensor
- 8Mp, 2.1um
-
- Lens
- 120˚

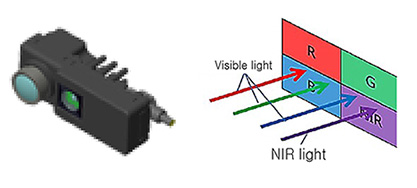

CMS (Camera Monitoring System) Camera recognizes the surroundings inside/outside the vehicle to allow the vehicle to drive autonomously and provide passengers with safety and convenience.
Key Features
- ㆍClear RGB Images in Low-light Environment
- ㆍEnhanced Recognition Rate
-
- Collects Information on Color and NIR at the same time
- Algorithm for Improving Illumination Visibility
Specification
-
- Product
- 3Mp CMS Camera
-
- Sensor
- 3Mp, 3.0um
-
- Lens
- 100˚

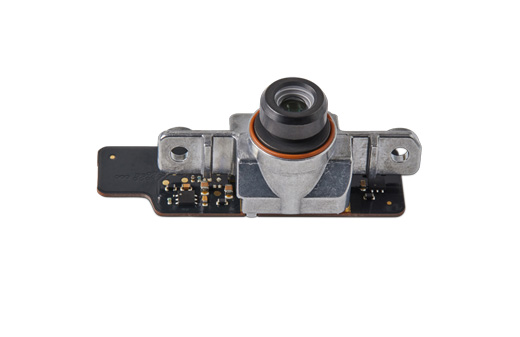

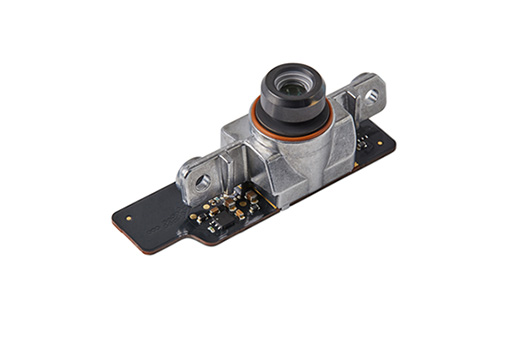

DMS(Driving Monitoring System) camera recognizes movements of an object with 3D for in-cabin safety and convenience. Using IR LED and VCSEL as light sources, it prides itself with high precision for indoor conditions.
Key Features
- ㆍIn-cabin Gesture Recognition by 3D Time of Flight Camera
- ㆍHigh Accuracy Rate by Using IR LED and VCSEL as light source
Specification
-
- Product
- 5Mp DMS Camera
-
- Sensor
- 5Mp(RGBIR),
2.2um
-
- Lens
- 140˚
Radar
- Provide End-to-End Service from Design to Production
-
- Aptycal Array Antennas(High-gain/High-resolution)
- Low-loss Circuit Design and Coupling Feed Structure
-Radar Signal Processing Technology for High SNR
- Best Quality Management
without Compromise
Evaluation Technology -
- Precise Calibration & Test via Robot Arm Control
- Error Zeroization via Laser Sensor
- Customized Manufacture Process
Design for Efficiency -
- Customized System Management through Database
- FACA Tracking System for Quality Management

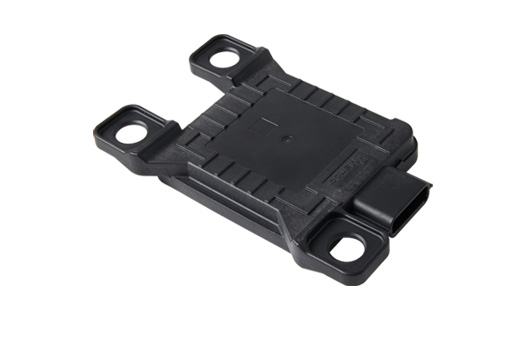

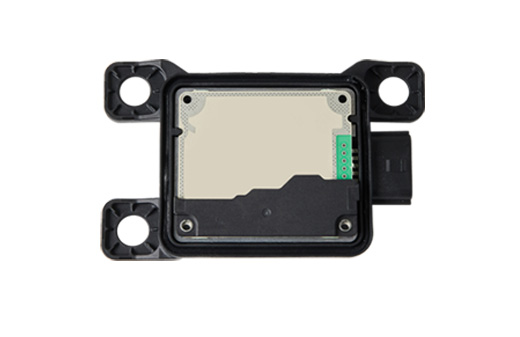

Radar implements autonomous driving and ADAS by identifying the direction, speed, and distance of external objects of the vehicle using high frequency (24, 77, and 79 GHz).
Key Features
- ㆍMaximization of Productivity through Construction of the Automated Production Line
- ㆍZeroization of Radar Alignment Error through Utilizing Laser Sensor
- ㆍPrecise Calibration & Test Processes through Robot Arm Control
Specification
-
- Product
- Radar
-
- Operation
Frequency - 77GHz
- Operation
-
- Tx & Rx
Channel - 3Tx 4Rx
- Tx & Rx
-
- Detection
Range - 180 ± 9m
- Detection
-
- FOV
Azimuth - 20 ± 2°
- FOV
-
- FOV
Elevation - 15 ± 1°
- FOV

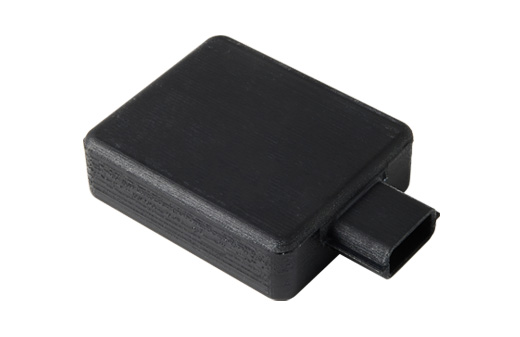

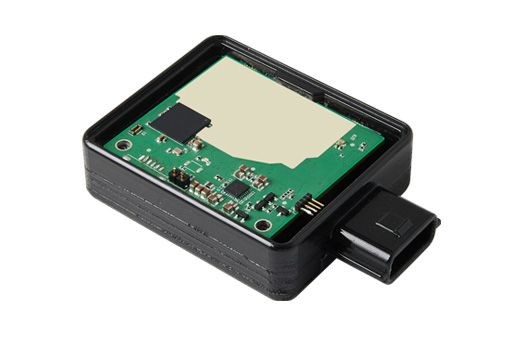

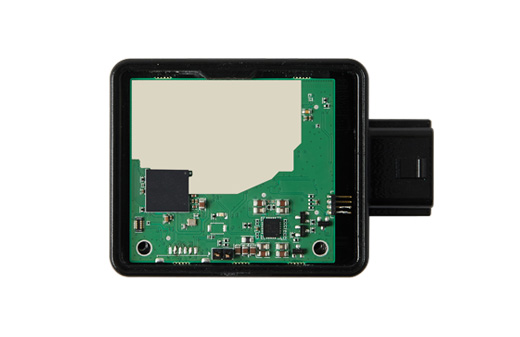

In-cabin Radar detects passenger’s presence or movement inside a car using radio waves preventing accidents and vehicle theft.
Key Features
- ㆍDetection of Precise Location through High-resolution Antenna Design Technology
- ㆍDetection of Child through High SNR Signal Processing Software
- ㆍSupport Various Applications such as Intrusion/Heartbeat/Breath Detection
Specification
-
- Product
- In-cabin
Radar
-
- Operation
Frequency - 60GHz
- Operation
-
- Tx & Rx
Channel - 3Tx 4Rx
- Tx & Rx
-
- Detection
Range - ≤ 3m
- Detection
-
- FOV
Azimuth - ± 60°
- FOV
-
- FOV
Elevation - ± 12°
- FOV
LiDAR
- Precise Optical Alignment and Process Control
- - Ultra-precision Active Alignment between TX and Rx sub-modules
- Various Experience
in Automotive Business
- Competitiveness in Manufacturing
and Compliant to Vehicle
Certification Standards
- Testing and Validation
-
- Understanding of NIR/SWIR lasers
- Capabilities for high-accuracy, long-range calibration
- Optimal Design Capabilities for
Mass Production -
- Unique Expertise from Engineering Design to
Large-scale Manufacturing
