Metaverse
Advanced Optical and Display Substrate Technologies
Creates a Hyper-Realistic
Metaverse
-
-
Camera Module Technology
to Visualize Real Space and Objects
-
Camera Module Technology
-
-
3D Sensing Technology
to Deliver Sophisticated Three-dimensional Effect
-
3D Sensing Technology
-
-
Ultra-thin Display Substrate Technology
to Realize High-resolution Images
-
Ultra-thin Display Substrate Technology
-
-
AR Display Module Technology
to Project Augmented Reality
-
AR Display Module Technology
LG Innotek‘s Product Line-up
-
Camera Module
ㆍSensing Camera
ㆍImaging Camera
-
3D Sensing Module
ㆍToF Module
-
Display Solution
ㆍ2 Metal COF
3D Sensing Module
- In-house Optics Design
-
- DOE(Diffractive Optical Elements)
- Collimation Lens and Diffuser and IR-Lens for ToF
- Flare &Ghost Simulation
- Manufacturing Process
-
- Precise Laser to Optics and Active Alignment
- Laser Compliance Test system for Safety
- Simulation
-
- Expertise in VCSEL Control and Simulation
- Compact and High Reliability
- Depth Evaluation System
-
- Valuable Core Component Characterization Test
- Near Field/Far Field Safety System
- Precise VCSEL Evaluation

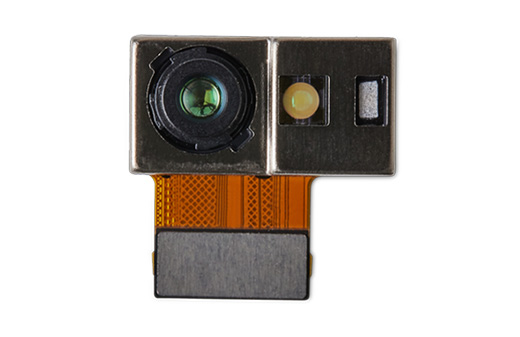

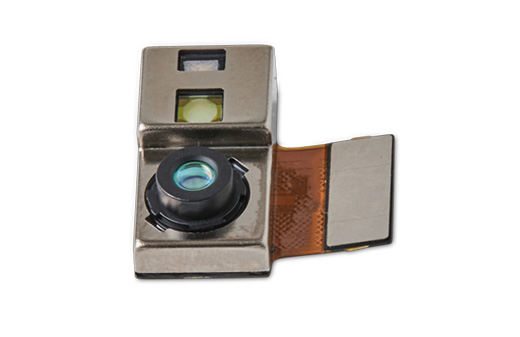

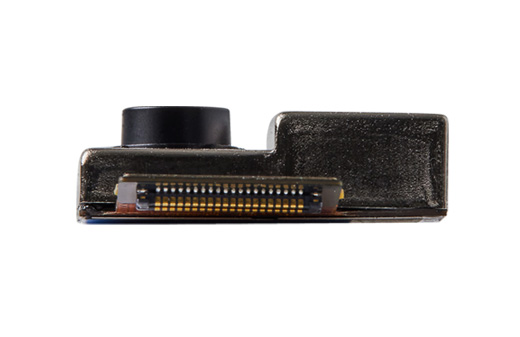

ToF(Time of Flight) module is a state-of-the art product which sense and deliver three-dimensional images in the same depth as human eyes. This product can be applied in XR devices, drones and robotics also.
Key Features
- ㆍPrecise Object Detection through Distance Sensing
- ㆍSmartphone/App On/Off based on 3D Face Recognition
- ㆍFast AF by Calculating the Exact Distance to the Subject
Specification
-
- Product
- HQVGA ToF
- 1Mp ToF
-
- Sensor
- VGA
- 1Mp
-
- Lens
- 80˚, F/1.4
- 136˚(D), 120˚(H), 120˚(V), F/1.2
-
- Detection Range
- 0.2~1.5m or 0.5~3m
- 0.1~5m
Camera Module
- Best Modulte Design
-
- Advanced R&D for Optimal Performance
- Closed Partnership with Part Makers
- Set Level Verification
-
-Standardized Evaluation System for Highly Reliable Products
- In-house Lens Design
-
- Capacity to Design Lens Using Various Materials
- Simulation to Minimized Flare and Ghost
- Module Package
-
- COB(Chip On Board) Package for Small Form Factor
- For 5G, 4K/8K Video

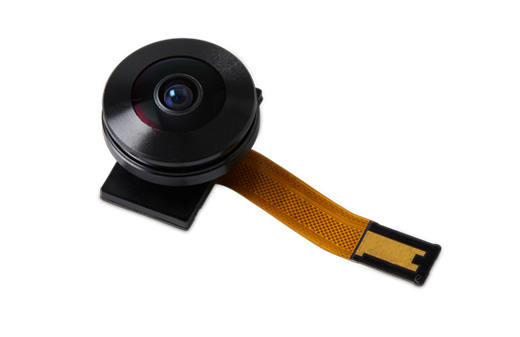

Sensing camera is applied to IoT, AR/VR devices, etc. to perform user recognition/authentication, gesture recognition, etc
Key Features
- ㆍVGA High Resolution
- ㆍPrecise Recognition of Long Distance
- ㆍNear-wide-angle Recognition based on Various Angles of View
Specification
-
- Product
- VGA Sensing Camera
-
- Sensor
- VGA(BW), 1/7.5"
-
- Lens
- 150˚, F/2.2

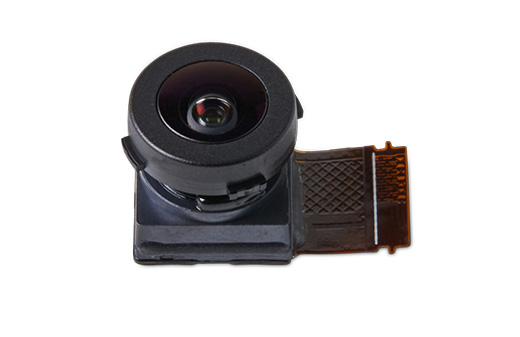

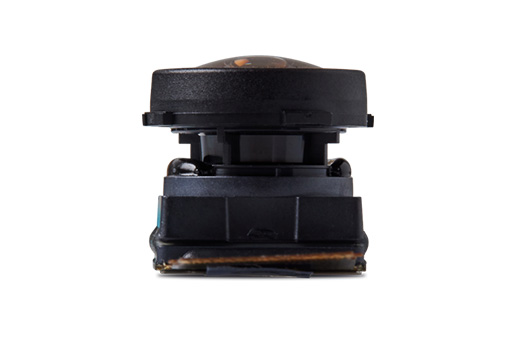

Imaging camera is applied to IoT, AR/VR devices to provide various contents such as video call, security, video surveillance, etc.
Key Features
- ㆍTake an Ultra-wide Angle Photo in One Shot
- ㆍWide-angle Camera with Minimal Peripheral Distortion
Specification
-
- Product
- 12Mp Imaging Camera
-
- Sensor
- 12Mp, 1/2.3"
-
- Lens
- 130˚, F/2.4
Display Solution
- Ultra Fine Pitch Patterningt
-
- High Quality Ultra Fine Pitch(18um↓)
- Over 4,000 Multi-channel within Limited Space
- Micro Via Hole Technology by Laser Drilling
-
- World’s Best Laser Drilling Capacity of Micro Via Hole
- Micro Via Hole(25um ↓) & High Reliability Via Cu Filling
- High Resolution Optical Inspection
-
- Automatic Precision Inspection Capacity
for High Reliability and Quality Substrate
- High Flexibility
-
- Minimize Display Bezel through High Bending
- Ultra Slim Substrate

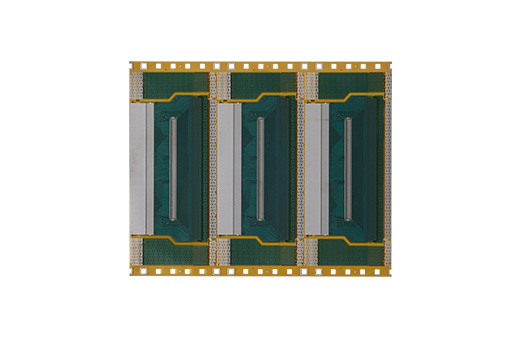

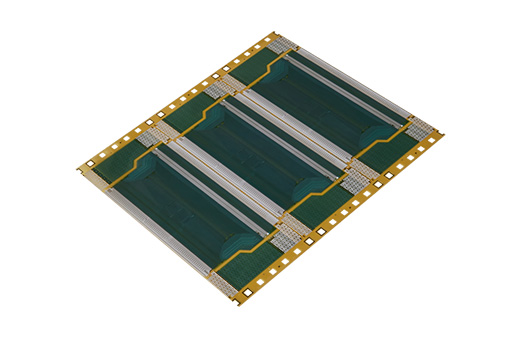

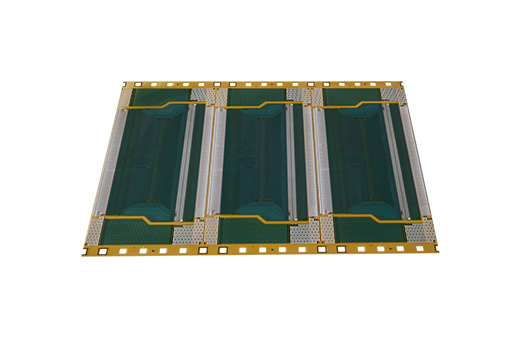

2 Metal COF is a key component for displays that transmits electric signals that drive each pixel on the panel. The substrate interconnects a display and a PCB in high-resolution products with design flexibility.
Key Features
- ㆍImplementing Multi Channel through
Fine Pitch Patterning
- ㆍHigh Flexibility and Compact Size via Reducing Assembly Area Size
- ㆍAutomatic Precision Inspection of Micro-circuits
Specification
-
- PI Thickness
- 35 ㎛
-
- Cu Thickness
- 8㎛
-
- Fine Pitch
- 18㎛
-
- Line / Space
- 8 / 10㎛
